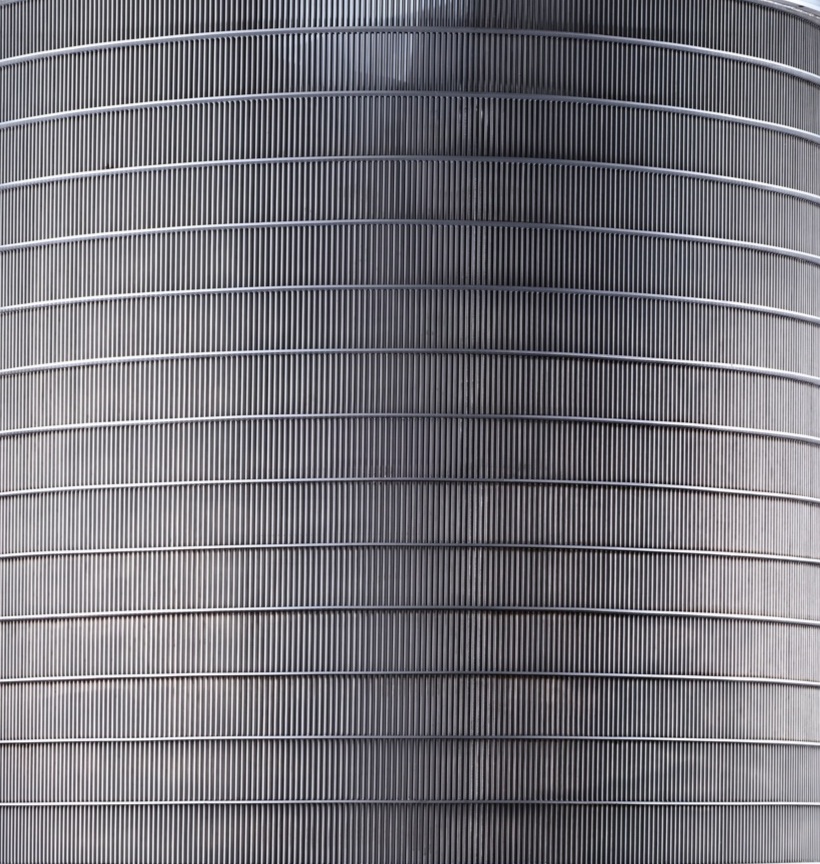

digester top screen basket

Digester top screen basket is applicable in the top separators of digesters and of the presoaking vessel during the continuous digester

Features:

ADSF has surmounted the crucial technical difficulties and became able to provide this product. Extreme hardness in profile wires and high resistance more dureble and longer lasting.

Special design in fixtures ensures the circularity tolerances ≤0.8mm and the cylindricity deviation ≤1.5mm, accurate fit keeps a very small gap between the cylinder and the screw press which guarantees the screen’s self-cleaning and avoids from clogging.

ADSF also provides the screening plates of extraction filtering belts used in the middle or bottom of digester.

Presently, the greatest digester cylinder in pulp & paper industry is:

ID 2400mm * 3200mm Height.

Slot opening ranging 4-8mm

A variety range of Profile Wires: width 7-10mm, height 20-25mm
